Soft Rubber LED Display Module Flexible LED Module LED Driver Module
- High Flexiblity
Its flexibile features allows it to be bent and rolled to conform into any shape as you like, such as cylinder, arch, round shape, convex, concave etc, to create an amazing viewing effect. -
Color Uniformity
Indoor version, it uses black lamps,without mask to make sure the color uniformity, and no reflection.
-
High Contrast &High Refresh Rate
Color contrast is 5000:1. Return the image's color authenticity and refresh rate reach at 3,840H

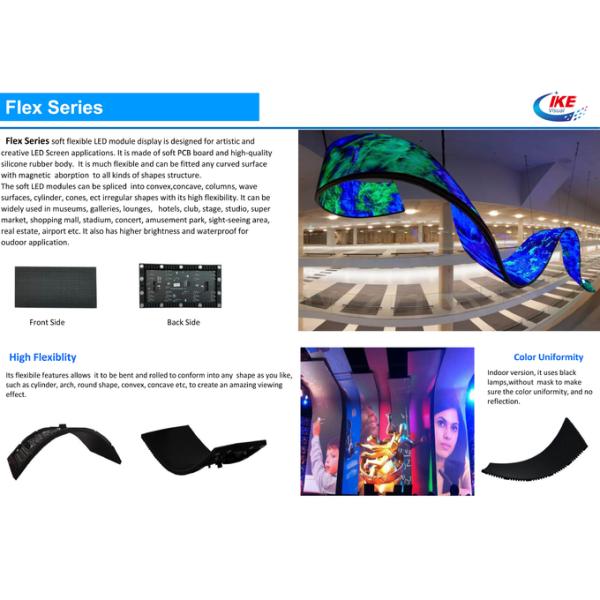

Flex Series soft flexible LED module display is designed for artistic and creative LED Screen applications.
It is made of soft PCB board and high-quality silicone rubber body.It is much flexible and can be fitted any curved surface with magnetic aborption to all kinds of shapes structure.
The soft LED modules can be spliced into convexconcavecolumns wave surfaces,cylinder,conesect irregular shapes with its high flexibility.
It can be widely used in museumsgalleries, lounges, hotels,club,stagestudio,super marketshopping mallstadium concert, amusement park,sight-seeing are real estateairport etc.
It also has higher brightness and waterproof for oudoor application
CE,RoHS,FCC
Specification:
| Model | Flex-1.8 | Flex-2.5 | Flex-3 | Flex-4 | Flex-5 |
| Pitch | P1.875mm | P2.5mm | P3.076mm | P4.0mm | P5.0mm |
| LED | SMD1010 | SMD1515 | 2020SMD | 2020SMD | 2020SMD |
| Brightness | 1000 Nits | 1000 Nits | 1000 Nits | 1000 Nits | 1000 Nits |
| Density | 284444 Pixels/sqm | 160000 Pixels/sqm | 111111 Pixels/sqm | 62500 Pixels/sqm | 40000 Pixels/sqm |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Scan Mode | 1/32 Scan | 1/24 Scan | 1/20 Scan | 1/15 Scan | 1/16 Scan |
| Size | 240mm*120mm | 240mm*120mm | 240mm*120mm | 240mm*120mm | 320mm*160mm |
| Module Resolution | 128 x 64 | 96*48 | 80*40 | 60*30 | 64*32 |
| Weight | 210g/per panel | 205g/per panel | 200g/per panel | 190g/per panel | 220g/per panel |
| Viewing Angle | 110. | 110. | 110. | 110. | 110. |
| IP Degree | IP 42 | IP 42 | IP 42 | IP 42 | IP 42 |
| Working Voltage | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V |
| Input Voltage | AC 96-260V | AC 96-260V | AC 96-260V | AC 96-260V | AC 96-260V |
Power Consumption
(Max.) | 600W/SQM | 500W/SQM | 500W/SQM | 500W/SQM | 500W/SQM |
| Working Temperature | -40~50℃ |
Quality assurance>>>
We offer 2 years warranty,and our products have passd CE,RoHS,FCC certificate.
All products have Age testing,shaking testing,waterproof testing.
In generally,Module test is 24h,entire screen test is 72h.
A series of testing before delivery can ensure transportation and quality products.
Shippment>>>
By air or sea,FOB Guangzhou/Shenzhen
Delivery time>>>
within 20 days counting from 30% prepayment arrived at account.
Payment term>>>
T/T(30% deposit,the remained 70% payment made before factory shipment )
Western union/paypal/L/C and so on
Product Tags:
|
|
Rubber Flexible Soft LED Module Display IP42 Waterproof 1000 Nits Images
|
